100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering

Name: 100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering
Brand: MEGA DRILL TECH
Price: 1 USD

China 100m Depth Hydraulic Crawler Drilling Rig Mechanical Engineering wholesale

Brand Name : MEGA DRILL TECH

Model Number : MDT130Y-2

Contact Now

Solar Drilling Rig, small borepile drilling ,micropile drilling machine

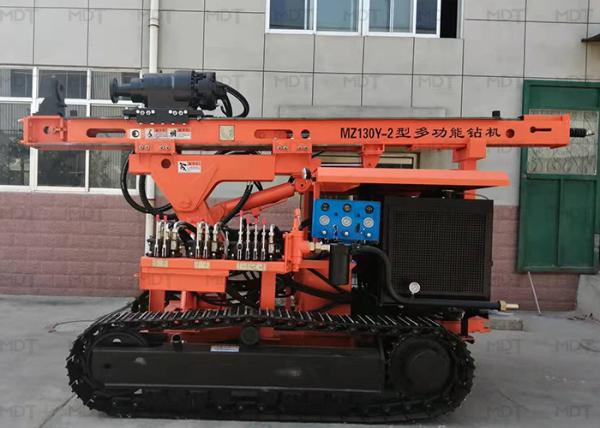

MDT130Y-2 hydraulic crawler drilling rig,use new type of hydraulic technology, low consumption, large rotary torque,convenient hole shifting . The drilling machine structure is compact,.while themast has adjustable compensation function. when drilling, the mast supported onthe ground, borehole stability is good. MZ130Y-2 drilling rig has reliableperformance, high efficiency, suitable for operating conditions. It greatlyreduces cost and improve the efficiency .
The drilling rig is mainly used for piling, anchor, water Wells, photovoltaicsolar screw pile, DTH blasting construction, etc.

Technical parameters

Bore diameter(mm)	90-300
Bore depth(m)	0-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(中压)
Air pressure(Mpa)	1.6-2.46(高压)
Pipe diameter(mm)	76/89
For rock(F)	6-20
Bore diameter(screw)(mm)	最大400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	2000
Skid pitch(°)	100
滑架摆动角度Swinging angle of skid(°)	左右共40
回转速度Rotation Speed(r/min)	0-70
主机功率Host Power (Kw)	56
爬坡角度 Climb ability(°)	35
外形尺寸 Dimension(LWH)(mm)	470019502500
重量weight(Kg)	4710
行走速度Walk speed(km/h)	0-2.5
